Aluminum Die Casting: A Comprehensive Guide to Its Process, Benefits, and Applications

Introduction

Aluminum die casting is an essential manufacturing process that involves forcing molten aluminum into molds under high pressure. This method is famous for creating complicated shapes with high precision and identical results, which is necessary for high-performance engineering applications. Aluminum is light, strong, and has high corrosion resistance, so die casting is widely used in the automotive, aerospace, and electronics industries.

Its high strength-to-weight ratio and ability to resist corrosion without the need for coatings make it perfect for manufacturing long-lasting parts used in applications where the components must withstand specific industry standards while also helping to reduce the overall weight of the assemblies. This is especially important in sectors that can benefit from weight reduction, leading to enhanced fuel economy and increased performance.

Aluminum die casting involves several key steps: Melting the aluminum, injecting it into a steel die, applying pressure, and then allowing it to cool down. This leads to solid and rigid parts that are dimensionally stable and have good surface quality, all desirable in precision-driven and technologically demanding industries. The process also enables the production of a vast array of components and products and simultaneously challenges the limits of mechanical characteristics and part complexity.

The Aluminum Die Casting Process

Melting and Preparation

The process of aluminum die casting involves the melting of aluminum alloy, which forms the raw material to be used in the process. This phase is crucial to achieve the final cast parts’ set mechanical and physical properties. Aluminum is favored in die casting for several reasons: The density of water is about 2 for this type of water.

These composites have a density of 7 g/cm³, which is one-third of that of steel, and therefore, it is pretty light. Also, aluminum has a thermal conductivity of about 235 W/mK, making it easy to cool and solidify the molten metal in the mold, which is a crucial factor in increasing the production rate and achieving the final product’s right dimensions.

The control of the melting process of aluminum in the die-casting process is crucial to maintain the alloy’s properties in the best way possible. Aluminum has a melting point of about 660 degrees Celsius or 1220 degrees Fahrenheit. Aluminum alloys used in die casting may melt at slightly different temperatures depending on the amount of the alloying elements, such as silicon, copper, and magnesium. These elements enhance the alloy’s mechanical properties and ability to flow when under pressure, which is vital in the process of pouring the alloy into intricate molds.

This is done to ensure that the die-cast parts produced are of high quality, and this is done by purging the molten aluminum to get rid of any impurities and gases. This is important because impurities will lead to defects in the cast parts. In contrast, gases will lead to porosity, decreasing the mechanical properties and quality of the final cast parts.

Techniques like fluxing are employed in which materials are added into the molten aluminum to make the impurities react with the aluminum and bring them to the surface where they can be easily skimmed off. Another necessary process is degassing, in which the molten metal is subjected to a flow of inert gases like argon or nitrogen to remove hydrogen and other gases dissolved in the metal.

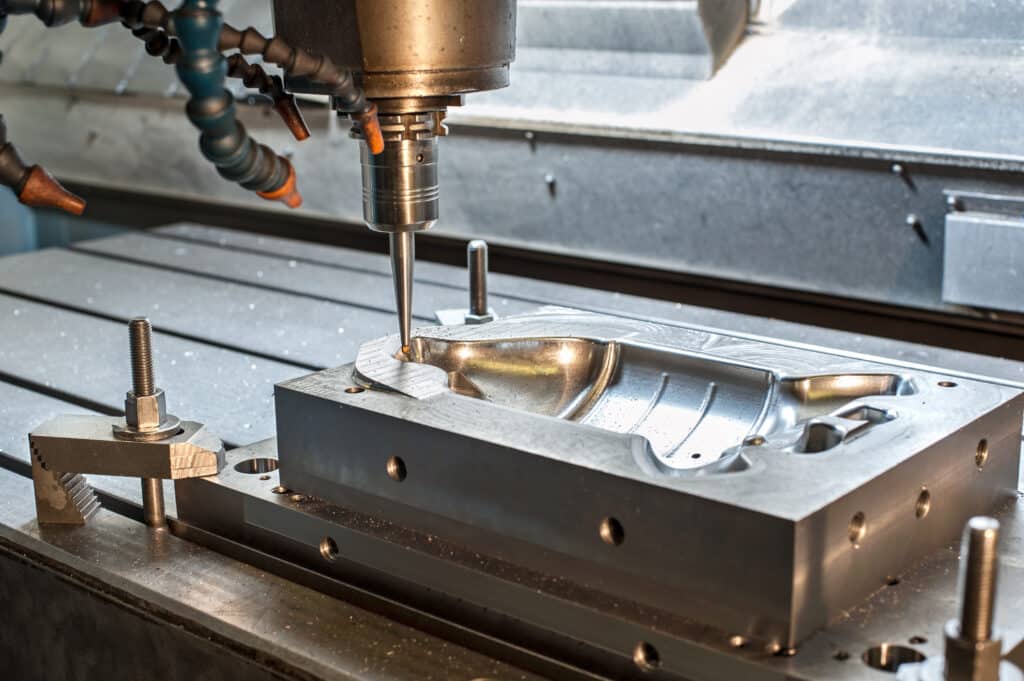

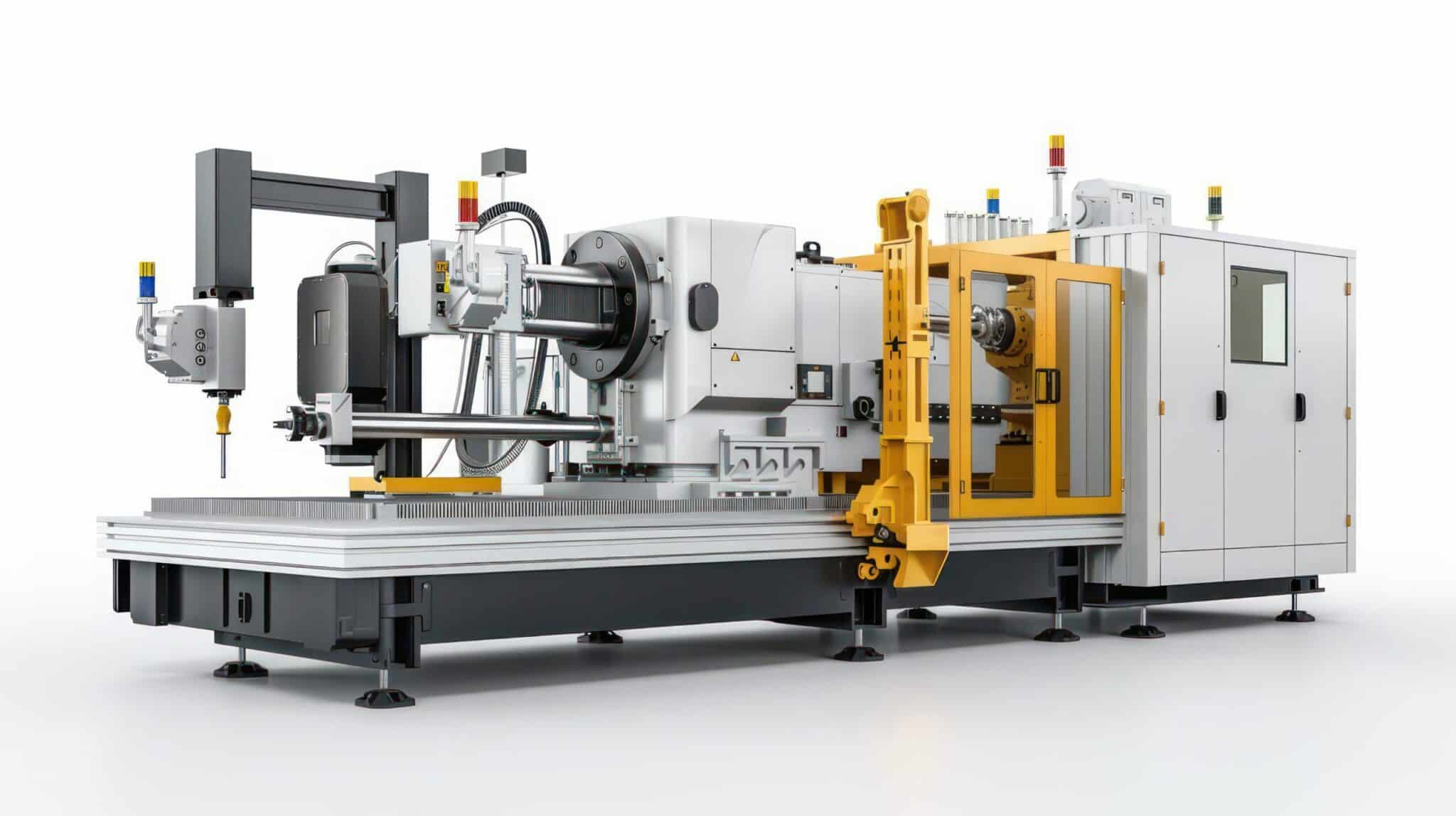

Mold Design and Setup

Mold design in aluminum die casting is not just a critical engineering activity but also a responsibility that directly impacts the productivity, quality, and performance of the casted parts. The design of these molds or dies must carefully consider the characteristics of aluminum and the die-casting process, underscoring the weight of your role in the process.

Importance of Mold Design in Die Casting

• Precision and Tolerance Aluminum die-casting molds are made in such a way that they produce high accuracy. Some of the highest tolerances achievable are ±0. Such accuracy is ±0. 002 inches (±0. 05 mm) is possible, which makes this process suitable for intricate and high-strength parts.
• Thermal management: Thermal management is a crucial aspect of mold design in aluminum die casting. It plays a significant role in preventing defects and managing cycle time. Molds have sophisticated cooling systems that regulate the aluminum’s temperature, ensuring the correct cooling rate and producing a high-quality surface with minimal internal stresses. This emphasis on thermal management should reassure the audience about the quality of the final cast parts.
• Material Flow and Venting: The location of the gate and vent in the mold is critical to directing the flow of molten aluminum and releasing gas. This avoids defects such as porosity and inclusions that can compromise the mechanical properties of the cast parts.

Types of Dies Used and Their Characteristics

• Single-Cavity Dies: These are employed when the aim is to make one high-quality part per cycle. They are especially efficient in the case of big or intricate parts where every casting must be made with great attention.
• Multiple-Cavity Dies: These dies can make several similar or different parts in one cycle, thus increasing production time. The problem with these dies is that the fill and cooling must be even across all the cavities so that the parts produced are of equal quality.
•  Unit Dies: These are modular dies, with frames having standardized designs that enable the use of interchangeable inserts. They are flexible and can be used for similar-sized parts but with different levels of complexity, hence helping to cut tooling costs.
• Combination Dies: Intended to produce several distinct components in a single cycle, these dies are well-suited for assembly work, as subsequent manipulation of the castings is minimized. These dies are rather complex, so the molten metal flow simulation and the subsequent solidification must be done with great care.

In practical applications, the type of mold material to be used also has to be appropriately chosen. Steel molds are the most popular since they possess high tensile strength and thermal conductivity of between 24 to 54 W/m·K, which helps control the heat transfer in die casting. Molds’ surface coatings, like titanium nitride or chromium nitride, increase the mold’s wear resistance and thus increase the mold life, which is vital in high-pressure and high-temperature conditions of aluminum die casting.

Injection and Cooling

Injection of Molten Aluminum

The aluminum die-casting process entails the injection of molten aluminum into the die cavity, which is a delicate procedure. This phase is done under high pressure, which varies from 1,500 to 25,000 psi, depending on the complexity of the part and the type of aluminum alloy used. The injection speed and pressure must be well controlled to ensure that the molten aluminum fills the entire mold cavity very quickly before it starts to cool down. This is important to ensure that all the aspects of the part are captured and that the structural strength of the part is correct.

The injection system mainly comprises a shot chamber where the molten aluminum is first placed and then injected into the mold through channels known as runners and gates. These channels are designed to have minimum turbulence, which can cause air to get into the castings and lead to defects such as porosity.

Cooling and Solidification Process

After the molten aluminum has been injected, the subsequent cooling and solidification process starts. This depends on the thermal properties of the mold material and the design of the cooling systems incorporated in the die. The cooling phase must be regulated to achieve directional solidification from the regions away from the gates to the gates. This method assists in preventing the formation of internal voids and guarantees that the microstructure is uniform and dense.

The solidification time is significant and can be estimated by the thermophysical properties of the aluminum alloy, the mold, and the part’s geometry. Typically, the formula used is:

t=(C×V/A)×D^2

Where t is the solidification time, C is a constant for the particular system, V/A is the volume-to-surface area ratio of the part, and D is the distance from the tip of the advancing liquid metal front to the nearest wall of the mold in cm. This calculation assists in estimating the cycle time and guaranteeing that the parts produced are of the right quality and standard while maintaining production speed.

The die is equipped with complex cooling channels with water or another coolant to increase the product’s quality and mechanical characteristics. These lines are positioned to support the uniform distribution of heat across the die surface, reducing the chances of thermal stresses that may cause warping or dimensional errors.

Ejection and Trimming

Ejection of the Cast Part

The ejection phase of aluminum die casting is as important as any other stage of the process, and the timing and mechanical control of the ejection are critical to the operation’s success and the quality of the part being produced. Once the aluminum has been solidified within the die, the die halves can be opened cautiously so as not to damage the part.

This is usually done through an ejection system, part of the die design and involves using ejector pins that apply equal pressure on the part’s surface. Ejection timing and speed are critical to avoid distortion or surface marks, which may be more challenging when dealing with intricate shapes or thin-walled parts.

The mechanical properties of aluminum and its thermal expansion coefficient (approximately 22. 2 x 10^-6/°C) are fundamental at this stage. The die and the aluminum part have different thermal expansion coefficients; as they cool down, they contract at different rates, which can cause the part to be held less firmly in the die. The engineers must consider these factors while designing the die and choosing the ejection system so that the part can be easily removed without applying much pressure.

Trimming and Cleaning Up the Final Product

The next operation is trimming and cleaning up to the required standard and finish to make the part look good. In the casting process, the aluminum is usually formed at the die seams or through the overflow and venting channels, resulting in what is known as a flash, consisting of thin metal fins. This excess material is cut off in a process known as trimming, usually done using a die-trim tool. This tool is intended to cut off the flash from the part along the particular marks without any effects on the part’s size or strength.

In more complicated or sensitive cases, other post-trimming operations, such as grinding or sanding, may be used to further improve the part’s surface or meet tighter dimensions. Also, any remnants from the die lubricants or the metal oxides formed during the casting process can be removed through shot blasting or chemical washing, thus improving the part’s surface quality so that it can undergo further surface treatments or painting.

Advantages of Aluminum Die Casting

Lightweight and Durable

Aluminum die casting is one of the most effective ways of manufacturing parts that are light and very strong. Aluminum is one of the most common materials used in the world today. With a density of about 2. 7 g/cm³, it is considerably lighter than other metals, such as steel, which has a density of about 7. 85 g/cm³. This is especially important in industries that require minimizing the weight of structures to increase efficiency and decrease power consumption.

Lightweight Benefits in Various Applications:

• Automotive Industry: In automotive engineering, minimizing the weight of the vehicle is a direct factor in increasing fuel economy and decreasing greenhouse gas emissions. These include engine components, transmission housings, and structural parts, which, through the aluminum die-casting process, lead to lighter vehicles with no compromise on safety or performance.

• Aerospace Applications: The aerospace industry has favored aluminum die casting because of its superior strength-to-weight ratio, which is vital in aircraft parts that are subject to stress and yet do not need to add extra weight. Brackets, housings, and other structural members produced by aluminum die casting are crucial elements in the structure of today’s aircraft.
• Consumer Electronics: Because aluminum is low-density, the electronics industry uses die-cast parts to produce electronics such as laptops, smartphones, and cameras. These parts offer good mechanical strength and heat dissipation, making the devices compact and portable.

Durability Aspects of Aluminum Die Cast Parts:

Aluminum is light in weight, has a high degree of strength, is non-corrosive, and can easily withstand different climatic conditions. This is because aluminum die-cast parts are produced in the die-casting process, which results in parts with high dimensional accuracy and tolerance. The parts can also be characterized by good heat resistance and mechanical strength using aluminum alloys containing silicon, magnesium, and zinc to enhance hardness and other mechanical properties.

Apart from their natural strength, the surface of die-cast aluminum parts may be painted, anodized, or powder-coated to improve their durability and appearance. These treatments not only enhance the parts’ aesthetic appeal but also enhance their protection from the environment. They can be used in harsh or very fluctuating conditions.

High Precision and Complexity

Achieving Complex Geometries

Aluminum die casting is particularly famous for its capability to manufacture parts of complicated shapes and detailed features. This is because molten aluminum can flow into the mold and solidify to give a very accurate replica of the mold, even the fine details. The high-pressure injection in die casting is crucial as it makes the aluminum penetrate well in the mold, essential in producing parts with intricate internal passageways, narrow walls, and surface finishes.

This is especially important in industries that demand combining numerous functions into a single part due to the high design flexibility that aluminum die casting offers. For instance, a single die-cast part can have features such as heat sinks, bosses, threads, and bearing seats that would have otherwise been produced using several operations or by assembling different parts.

Maintaining Tight Tolerances

Aluminum die casting also enables the attainment of close tolerance and dimensional stability necessary for high performance in numerous industries. Aluminum die-cast parts can hold tolerances of ±0. This can be done at a rate of 0. 005 inches per inch, and it can be further refined to even tighter tolerances through further finishing.

The aluminum die-casting process is precise because the dies used are very rigid. These are made with high-quality steel and can handle the pressure and heat used in die casting without getting distorted, thus producing each part that is similar to the previous one. This is important, especially in mass production, where standardization is paramount.

Also, the accuracy of the process does not require the material to undergo other processes like turning, which is time-consuming and costly in the manufacturing process. But when close tolerances or better surface finishes are required, aluminum die-cast parts can be readily machined to achieve the required tolerances and surface finishes without affecting the strength of the part.

Cost Efficiency

Comparison with Other Metal Fabrication Methods

Aluminum die casting is an economical method of producing parts, particularly for large production runs. Compared to other metal fabrication techniques such as machining, forging, and sand casting, die casting provides a more economical option due to several key factors: the production rate, material efficiency, and minimization of secondary operations.

1. Production Speed:
   • Aluminum die casting has short cycle times of 30 seconds to 3 minutes per shot for the part, depending on its size and complexity. This is much faster than some other methods, such as sand casting, in which the creation of the mold itself may take several hours. High-pressure die-casting machines can turn out thousands of parts in one day; therefore, when mass production is considered, it is pretty economical.
   • Machining, on the other hand, may take more time in a cycle, especially when dealing with intricate shapes. Forging may even take more time, given that it involves heating, forming, and then cooling the material.
2. Material Utilization:
   • Aluminum die casting produces near-net shape parts; the cast parts only need a little finishing to meet the required standards. This is more efficient in using material than machining, where a lot of material has to be removed to get the desired part. In die casting, the material scrap, such as the runners and overflows, can easily be recycled and fed back into the process, thus reducing the material cost.
   •  For instance, in machining, the material scrap rate can be as high as 40-50% of the original billet, depending on the shape of the part to be produced. In aluminum die casting, the scrap rates are much lower, ranging from 10 to 20 percent, and most of the scrap is reusable.
3. Tooling Costs:
   • Die casting is capital intensive as it demands a considerable amount of money to be spent on the die (tooling), but this is because when producing in large quantities, the cost is greatly reduced. Good quality steel die employed in die casting is expected to last for hundreds of thousands of cycles or even millions of cycles, depending on the intricacy of the design and the level of maintenance given, thereby distributing the cost of the die over a large number of parts.
   • However, single-use molds of sand and resin are used in sand casting, which have to be prepared for every new cycle, thus making the per-part cost at higher volumes very high. Forging also needs a number of dies for various operations involved in the process, hence increasing the tooling cost.
   • The tooling cost for die-casting mold usually is between $15,000 to $150,000 for a single die, depending on the size of the part and its complexity. However, when the cost is spread over a production run of 100000 to 1000 000 parts, the per-part cost becomes relatively low. It is comparable to or even cheaper than processes such as machining, where tooling wear and tear is a significant expense.
4. Reduction of Secondary Operations:
   • In contrast with forging or machining, the die-casting parts may require fewer finishing operations, including cutting, grinding, and drilling. The parts produced by die-casting have better tolerance (±0. 005 inches) and better surface finish (32-63 Ra µin) than those produced by forging or machining, which may require further finishing operations. This minimizes or completely erases the requirement of other expensive processes, thus adding more value to cost efficiency.
   • Secondary operations are almost always required in forging because the part produced is usually semi-finished, while in machining, cutting and grinding are required to produce the final part.

Cost Breakdown Example

Let’s compare the cost efficiency between die casting, sand casting, and machining using a simplified example:

• Aluminum Die Casting: Depending on the complexity, producing 100,000 parts could cost between $1.50 and $3.00 per part, with tooling amortized over the entire production run.
• Sand Casting: The cost for the same 100,000 parts could range from $5 to $10 per part, with higher labor and material costs due to the single-use mold and slower production speed.
• Machining: Producing 100,000 parts via machining could cost $8 to $15 per part due to longer cycle times, higher material wastage, and the need for more extensive post-processing.

Excellent Thermal and Electrical Conductivity

Aluminum’s Thermal Conductivity

The thermal conductivity of Aluminum is high—about 235 W/mK at room temperature. This property makes it very useful in transferring heat, which is an important aspect, especially for components that need a lot of heat to be dissipated. On the other hand, the thermal conductivity of steel is about 50 W/m·K, while that of aluminum is five times better at 100 W/m·K.

Aluminum die-cast parts are handy in applications where heat management is of imperative concern. Aluminum’s property of heat dissipation makes it very effective in preventing overheating of electrical and mechanical gadgets. Besides, aluminum is lightweight and has good thermal properties, which makes it suitable for industries that require lightweight material with good heat transfer.

Applications Benefiting from Thermal Conductivity:

1. Automotive Components:
   • Cylinder Heads and Engine Blocks: Aluminum die-cast engine parts like cylinder heads and engine blocks are ideal because they offer good heat transfer, thus ensuring that the internal combustion engines operate at their best temperatures. These parts control the thermal loads well, thus increasing the engine’s life span and enhancing its performance.

1. • Heat Sinks and Radiators: One of the significant properties of aluminum is its high thermal conductivity, which is used in automobile radiators and heat exchangers. The aluminum die-cast radiators are lighter in weight and are thermally conductive, which enables the heat to be transferred from the engine coolant at a faster rate, thus enhancing cooling.
2. Electronics Enclosures:
   • Heat Sinks: Aluminum die-cast heat sinks are widely used in consumer electronics, power devices, and LED lighting systems where heat is a significant factor that can cause damage to the product. Aluminum has high thermal conductivity, which makes it suitable for cooling purposes. At the same time, it is small and ideal for today’s miniature electronic devices.
   • Laptop and Mobile Device Casings: Most laptops, tablets, and smartphones use aluminum die-cast casings for strength and appearance and heat sink applications. This is particularly useful in stopping the devices from overheating, especially those that are thin and highly powerful and have limited space for cooling.

Aluminum’s Electrical Conductivity

Aluminum’s electrical conductivity is also impressive, with a conductivity rating of about 37.7 x 10^6 S/m (siemens per meter) at room temperature, which is approximately 60% of that of copper but at only about 30% of the weight. This makes aluminum viable for applications where weight reduction is as critical as electrical performance.

However, aluminum has a lower density and relatively high electrical conductivity than other materials, which is why it is commonly used in electrical transmission and automotive electrical systems. Aluminum is perfect for electrical parts that require complicated shapes and conductive properties since the die-casting process can produce electric components, including housings and connectors.

Applications Benefiting from Electrical Conductivity:

1. Automotive Electrical Systems:
   • Battery Housings and Electrical Connectors: Aluminum die casting is also used in battery housing and electrical connectors due to the rising trend of electric cars, as it is light and has good electrical conductivity. These components help in efficient energy transfer and simultaneously reduce the vehicle’s overall weight, thus enhancing energy efficiency.
   • Electric Vehicle (EV) Charging Infrastructure: Aluminum die-cast connectors and components are employed in EV charging systems to provide electrical connections that possess good conductivity, durability, and resistance to corrosion.
2. Power Distribution Components:
   • Busbars and Conduits In electrical power systems, aluminum die-cast busbars and conduits are used since they can transmit large currents with strength. Aluminum is lighter than copper, so it is easier to install. Its high conductivity makes it suitable for electrical substations and distribution networks.
   • High-Voltage Transmission Lines: Aluminum is also used in overhead power transmission lines because it is light and can reduce the mechanical stress on towers and structures. It also has high electrical conductivity, thus making energy loss minimal over long distances.

Applications of Aluminum Die Casting

Automotive Industry

The automotive industry has been one of the biggest consumers of aluminum die casting due to the many advantages that the material offers, including its low density, good thermal conductivity, and ability to be molded into intricate shapes. Due to the increased focus on the production of fuel-efficient vehicles and the emergence of electric cars, the market for aluminum die-cast components is still on the rise.

Specific Parts Made via Aluminum Die Casting

Aluminum die casting produces a wide array of components in the automotive sector. Some essential parts include:

1. Engine Blocks and Cylinder Heads:
   • These components are vital in working internal combustion engines, which are used in most vehicles. That is because engine blocks and cylinder heads made from aluminum die casting are light in weight, thermally efficient, and resistant to the high pressures and temperatures that prevail within the engine.
   • Aluminum die-cast engine blocks are lighter by 40-60% compared to iron ones. For instance, a cast iron engine block may weigh 120-150 lbs, while the same aluminum die-cast block will weigh between 70-90 lbs. This directly leads to better fuel consumption and the overall control of the vehicle due to the decrease in the car’s weight.

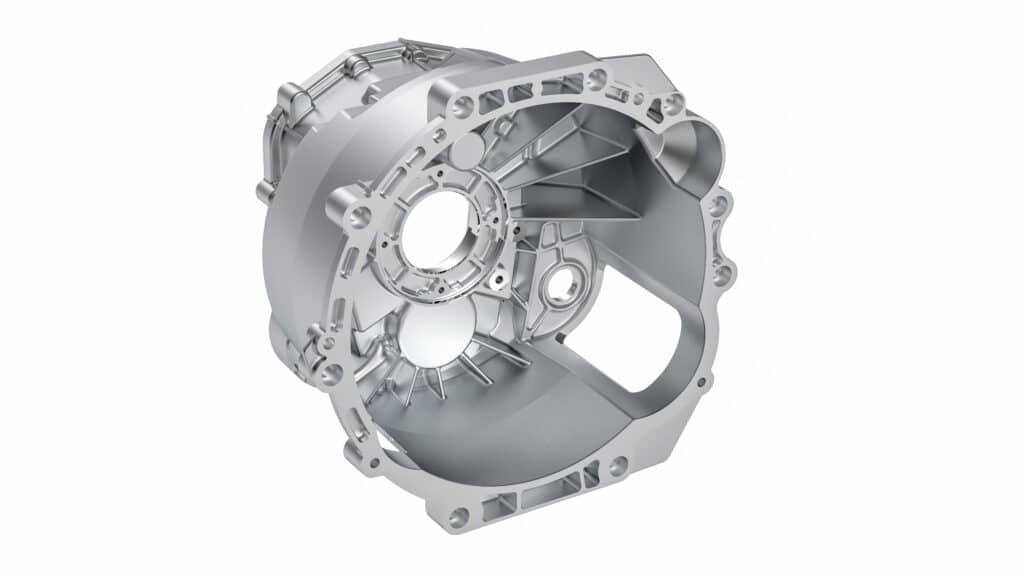

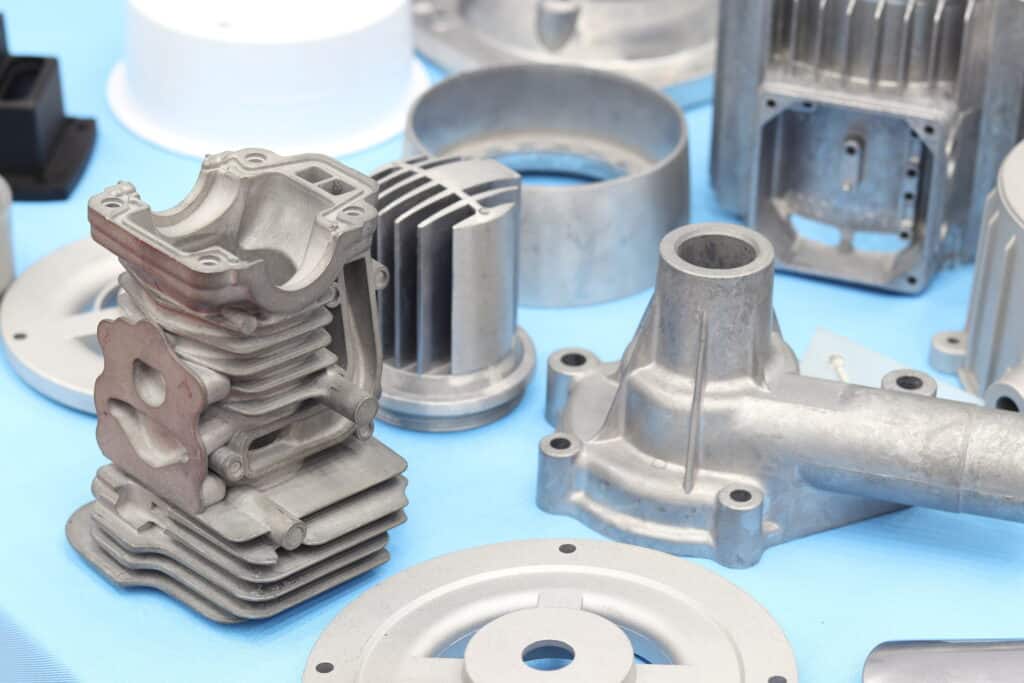

2. Transmission Housings:
   • Aluminum die-cast transmission housings are used to manufacture transmission housing, which is lightweight and high-strength. The reduced mass benefits the whole vehicle dynamics, particularly in EVs, where weight saving is critical for increasing battery range.
   • Aluminum transmission housing is now used in most modern EVs and can weigh between 20-25 kg while steel can weigh between 40 kg and above. This directly translates to energy savings where for every 100kg of weight that is cut from a vehicle, the range can be increased by 10-15%.
3. Suspension Components:
   • Parts like control arms, knuckles, and subframes are often manufactured using aluminum die casting. These components must be lightweight yet strong enough to handle the stresses associated with steering and suspension systems.
   • A die-cast aluminum control arm weighs about 2-3 kg, compared to its steel equivalent at 4-5 kg. This reduction in unsprung mass results in better handling and a more responsive suspension system, enhancing the vehicle’s overall performance.
4. Brake Calipers:
   • Brake calipers made from aluminum die casting are lightweight and capable of withstanding high temperatures generated during braking. The excellent thermal conductivity of aluminum helps dissipate heat more effectively, reducing the risk of brake fades.
   • Aluminum brake calipers can weigh around 1.5-2 kg each, compared to 3-4 kg for cast iron versions. This weight reduction lowers the unsprung mass, improving braking efficiency and vehicle agility.
5. Electric Vehicle (EV) Battery Housings:
   • In EVs, aluminum die-cast battery housings are used to encase and protect the battery cells. These housings must be lightweight to optimize the vehicle’s range while providing structural integrity and thermal management.
   • Battery housings made from aluminum can weigh around 100-150 kg in total, depending on the size of the battery pack. Aluminum’s thermal conductivity (235 W/m·K) helps dissipate heat more effectively than other materials, ensuring the battery operates within safe temperature limits.

Contribution to Automotive Design and Efficiency

Aluminum die casting contributes significantly to automotive design and efficiency in several ways:

1. Fuel Efficiency:
   • Reducing vehicle weight is one of the most direct ways to improve fuel efficiency. By replacing heavier steel and cast iron parts with lighter aluminum die-cast components, manufacturers can decrease the overall vehicle weight by up to 20-30%. This weight reduction leads to lower fuel consumption and reduced emissions.
   • Technical impact: For every 100 kg of weight reduction, a vehicle’s fuel efficiency can improve by 0.2-0.3 L/100 km. Over the vehicle’s lifetime, this translates into substantial fuel savings and reduced carbon footprint.
2. Thermal Management:
   • Aluminum’s excellent thermal properties are crucial in managing heat in engines, transmissions, and brake systems. Effective heat dissipation prevents overheating, increases component longevity, and improves vehicle performance.
   • In modern vehicles, aluminum components in the powertrain and braking systems can lower operational temperatures by 10-15°C compared to their steel or cast iron counterparts, significantly reducing wear and tear.
3. Structural Integrity and Crashworthiness:
   • Although lightweight, aluminum die-cast parts provide excellent structural integrity, meeting or exceeding crash safety standards. The material’s high strength-to-weight ratio allows for robust designs that offer both durability and energy absorption in the event of a collision.
   • Aluminum die-cast parts can exhibit tensile strengths of 250-400 MPa (depending on the alloy), comparable to many steel components but at a fraction of the weight. This ensures that aluminum parts contribute to both occupant safety and vehicle performance.

Aerospace Applications

The Aerospace industry requires materials and manufacturing techniques that are light in weight yet strong enough to bear mechanical stresses. Aluminum die casting is very significant in this field as it offers the best of the two: lightweight and strength, which is crucial in enhancing the fuel economy and carrying capacity of both commercial and military airplanes. The accuracy and capacity to form intricate shapes that are difficult to produce using other methods make aluminum die casting an important tool in aerospace production.

Role in Lightweight Aerospace Components

Aluminum’s low density of 2.7 g/cm³ makes it a natural choice for aerospace components, where every gram saved contributes to increased fuel efficiency and reduced operational costs. In comparison, standard aerospace-grade steels have densities of around 7.8 g/cm³, making aluminum die-cast parts significantly lighter while retaining much of the strength needed for high-stress environments.

Specific Aerospace Components Made from Aluminum die-casting

1. Engine Components:
   • Turbine Housings and Engine Mounts: Aluminum die-cast parts are applied in engine housings and mounts, which are critical for decreasing the weight of the aircraft and thus enhancing its efficiency. All these components are subjected to thermal and mechanical stresses such as vibration and hence require high precision, which aluminum die casting provides.
   • Turbine housings made from aluminum die casting can weigh up to 50% less than those made from traditional steel, translating into significant fuel savings. For instance, in a jet engine, weight reductions of 50-100 kg per engine can lead to fuel efficiency improvements of 1-2% per flight.
2. Structural Components:
   • Fuselage Frames and Bulkheads: Aluminum die casting creates structural components such as fuselage frames and bulkheads, which must be lightweight and robust. These components are critical in maintaining the aircraft’s structural integrity without adding unnecessary weight.
   • Die-cast aluminum bulkheads typically have a tensile strength of 200-400 MPa and can weigh up to 30-40% less than equivalent steel components. This weight savings is crucial in long-haul flights, where reduced mass directly correlates to improved fuel efficiency and increased payload capacity.
3. Landing Gear Components:
   • While the significant parts of the primary landing gear are made from such materials as titanium, aluminum die castings are used for the secondary landing gear and linkages. These parts offer the required rigidity and toughness, and at the same time, the weight is not very high.
   • Aluminum die-cast landing gear components can reduce weight by 15-30% and, with modern alloys, can achieve yield strengths of up to 300 MPa, ensuring structural reliability during repeated high-impact landings.
4. Avionics Housings and Electronics Enclosures:
   • In avionics, aluminum die-cast enclosures protect the electrical components and control the temperature around the electronics. Such housings need to be as light as possible while being strong enough to shield essential systems in the case of high-vibration and high-temperature environments.
   • Aluminum die-cast avionics housings offer electromagnetic shielding (with an attenuation of up to 60-80 dB) and excellent thermal dissipation. Given aluminum’s thermal conductivity of 235 W/m·K, these housings ensure that onboard electronics remain within optimal operating temperatures.

Contribution to Aircraft Design and Efficiency

1. Weight Reduction and Fuel Efficiency:
   • In aerospace, every kilogram saved translates into substantial fuel savings. With aluminum die casting, weight savings of 20-30% are typical for many components, contributing to improved fuel efficiency and extended range for commercial and military aircraft.
   • For commercial airliners, reducing an aircraft’s weight by 100 kg can improve fuel efficiency by 0.75-1% per flight, translating to thousands of liters of fuel saved annually. This not only reduces operating costs but also significantly lowers carbon emissions.
2. Thermal Management in High-Stress Environments:
   • Aluminum die-cast components are widely used in applications where efficient heat dissipation is needed, such as in engines and electronics enclosures. The thermal conductivity of aluminum is high, making it easy to control heat loads and thus prevent component failure in critical systems.
   • Components like engine mounts, which experience mechanical and thermal stress, benefit from aluminum’s ability to maintain structural integrity at elevated temperatures, with operating ranges up to 300°C for high-temperature alloys.
3. High Strength-to-Weight Ratio:
   • One of the most significant advantages of aluminum die casting in aerospace applications is the material’s high strength-to-weight ratio. For example, aluminum die-cast alloys such as A356 can provide tensile strengths upwards of 300 MPa while being much lighter than steel or titanium, offering the necessary load-bearing capability with reduced weight.
   • Aircraft wing spars or control surfaces made from aluminum die casting can weigh up to 50% less than steel alternatives, reducing the aircraft’s overall mass and improving flight performance metrics such as takeoff speed and climb rate.
4. Corrosion Resistance:
   • Aluminum die-cast parts are also resistant to corrosion, and this is important in aerospace applications where parts are exposed to moisture, salt, and high temperatures. Most of the aerospace alloys contain magnesium and silicon to enhance the material’s corrosion resistance.
   • Aluminum die-cast components, particularly those using alloys like A360 and A380, exhibit corrosion rates of 0.05-0.10 mm/year in saline environments, making them highly durable in harsh conditions encountered during flight.

Consumer Electronics

In consumer electronics, aluminum die casting is widely used to produce lightweight, vital heat-sink parts. This is because the die-casting process offers high precision and flexibility that enable the production of complex geometries with tight tolerances; this is essential in the current world, where space is a crucial factor, and performance is critical. Some of the inherent properties of aluminum include its lightness, high thermal conductivity, and strength, thus making it suitable for use in electronic enclosures and internal parts.

Examples of Common Die-Cast Aluminum Parts in Everyday Devices

1. Smartphone and Tablet Frames:
   • The body of smartphones and tablets is constructed from aluminum die casting because of its high strength-to-weight ratio and the fact that it can incorporate complex shapes such as antenna openings, mounting points, and ports.
   • A typical die-cast aluminum smartphone frame weighs around 50-100 grams, depending on the model, contributing to the sleek, lightweight feel without compromising durability. Aluminum alloys used in these frames, such as A380, provide tensile strengths of 310 MPa and yield 160 MPa, making them capable of withstanding drops and everyday wear.
2. Laptop Casings:
   • The aluminum die-cast casings for laptops have structural strength and heat dissipation, which are essential in high-performance computing as heat is a big issue. The casings offer two key roles. The outer body of the computer is the outer body, while in most designs, they also form part of the heat dissipation system for the CPU and GPU.
   • A die-cast aluminum laptop casing typically weighs around 300-500 grams and is as thin as 1.5-2.0 mm. Aluminum’s thermal conductivity (approximately 235 W/m·K) allows for passive cooling, reducing the need for heavy and power-consuming active cooling systems. In premium laptops, casings made from A360 or A413 alloys balance rigidity and weight with tensile strengths of 275-300 MPa.
3. Heat Sinks:
   • Aluminum die-cast heat sinks are used in everything ranging from desktop computers to smart TVs and gaming consoles. The heat sink transfers heat from the electronic components like CPU, GPU, and PSU to avoid overheating and maintain performance.
   • Die-cast aluminum heat sinks are often designed with fins to maximize surface area for efficient heat dissipation. The typical thermal conductivity of aluminum used in these heat sinks is around 235 W/m·K, making it ideal for thermal management applications. Depending on the application, a heat sink’s dimensions and fin configurations are optimized using simulation software to balance weight and cooling efficiency. For instance, a typical aluminum heat sink used in a desktop CPU can weigh around 150-250 grams while maintaining a surface area of 1000-1500 cm².
4. Audio Equipment Housings:
   • Some high-end audio systems like amplifiers and home audio speakers come with die-cast aluminum enclosures. These housings also afford structural protection to the system and improve the acoustics by reducing vibrations and resonance. The stiffness and damping characteristics of aluminum alloys are advantageous because they provide better sound quality.
   • A die-cast aluminum housing for an amplifier or speaker enclosure typically weighs around 1-2 kg, providing a robust structure without adding excessive weight. Aluminum alloys such as A380 are commonly used, offering a combination of strength and dimensional stability. The thermal conductivity also assists in dissipating heat generated by power amplifiers, ensuring reliable performance under prolonged use.
5. Drone Frames:
   • A majority of consumer drones have aluminum die-casting frames since the frames have to be light, strong, and heat resistant. These frames must withstand the mechanical stress of flying while at the same time incorporating motors, batteries, and sensors.
   • A die-cast aluminum drone frame can weigh as little as 100-200 grams yet offer a tensile strength of around 300 MPa, making it resistant to the mechanical stresses and vibrations experienced during flight. The high thermal conductivity of aluminum helps manage the heat generated by onboard electronics and motors.

Contribution to Product Design and Efficiency

1. Thermal Management:
   • Aluminum has good thermal properties, and thermal management is a significant concern in consumer electronics; therefore, aluminum is suitable for cases, enclosures, and internal parts. Aluminum also serves as a passive heat sink, which aids in the dissipation of heat from the critical components, giving the devices longer spans.
   • In devices like laptops or smartphones, aluminum can reduce internal component temperatures by 10-15°C compared to plastics, enhancing performance and longevity.
2. Lightweight Durability:
   • Aluminum is a robust and lightweight material, so it is widely used in manufacturing light yet strong products. Aluminum die casting can produce thin-walled parts with intricate shapes that other methods like stamping or machining cannot quickly produce.
   • In many cases, aluminum die-cast components can be produced with wall thicknesses as low as 1.0-1.2 mm, offering weight reductions of 30-50% compared to equivalent plastic or steel parts, all while maintaining superior strength and rigidity.
3. Aesthetic and Finish:
   • Another reason for the application of aluminum in consumer electronics is the high-end appearance of the material. Anodized or powder-coated aluminum die-cast parts have good wear and corrosion properties and a perfect surface finish, ideal for consumer products such as mobile phones and laptops.
   • Anodized aluminum can achieve a hardness of 200-400 HV (Vickers Hardness), providing a durable, scratch-resistant surface that maintains its appearance over the product’s life.

Other Industries

Aluminum die casting is not only used in the automotive, aerospace, and consumer electronics industries. Its flexibility, low weight, and high resistance make it suitable for various sectors, including medical, home use, and tools. Below are some examples of applications from each of these sectors to show the technical superiority and performance improvement of aluminum die casting.

Healthcare

1. Medical Device Housings:
   • In healthcare, aluminum die casting is commonly used to manufacture housings for medical devices such as imaging systems (X-ray machines, MRI equipment) and diagnostic equipment. These devices require lightweight yet robust enclosures capable of protecting sensitive internal components.
   • Medical device housings made from aluminum die casting typically weigh 20-30% less than equivalent steel enclosures while providing tensile strengths between 220-320 MPa (depending on the alloy). The die-casting process allows for creating complex geometries, integrating features such as mounting points and cooling channels in a single casting, reducing the need for secondary operations.
2. Surgical Instruments:
   • Some surgical instruments are made of aluminum die casting for use where weight, strength, and corrosion resistance are of great concern. If treated well, aluminum is biocompatible and can be used in non-implant medical applications.
   • Lightweight surgical instruments weigh 40-50% less than stainless steel alternatives. Aluminum die-cast instruments made from A360 or A380 alloys typically have a yield strength of 150-200 MPa, which is sufficient for instruments that require precision but do not need to bear extreme loads.

Appliances

1. Refrigerator and Oven Components:
   • Aluminum die casting is widely used in household appliances for components such as motor housings, structural supports, and heat transfer elements. The material’s thermal conductivity and corrosion resistance are particularly beneficial in environments where temperature control and longevity are critical, such as refrigerators and ovens.
   • A typical aluminum die-cast motor housing in a refrigerator compressor weighs around 1-1.5 kg, with the material’s thermal conductivity of 235 W/m·K helping dissipate heat generated by the motor. Die-cast aluminum parts in oven heat exchangers and supports can operate at temperatures up to 300°C without significant deformation or loss of mechanical properties.
2. Washing Machine Components:
   • Aluminum die casting is used for critical parts in washing machines, including gearbox housings and pulleys. These components require the strength to withstand mechanical stresses while operating and corrosion resistance due to water exposure.
   • Gearbox housings in washing machines made from die-cast aluminum alloys such as A383 weigh around 2-3 kg but provide the necessary strength to endure mechanical loads with yield strengths of 150-180 MPa. The corrosion resistance of aluminum, primarily when anodized or coated, extends the component’s lifespan in a moisture-heavy environment.

Tools

1. Power Tool Housings:
   • Aluminum die casting is extensively used to manufacture housings for power tools such as drills, saws, and grinders. The lightweight and durability of aluminum helps reduce operator fatigue while ensuring that the tool can withstand mechanical impacts and vibrations during use.
   • Die-cast aluminum power tool housings typically weigh 200-500 grams, depending on the size and type of tool. Alloys such as A360 provide yield strengths of around 190 MPa, ensuring the housing is robust enough for everyday use while remaining light enough to handle comfortably. The housing also acts as a heat sink, aiding in thermal management by dissipating heat generated by the motor.
2. Hand Tool Components:
   • Certain hand tools like wrenches, pliers, and ratchets are made from aluminum die-casting to reduce weight while maintaining sufficient strength for everyday use. The lighter weight is especially beneficial in trades where tools are used frequently over long periods.
   • Die-cast aluminum hand tools can weigh 30-50% less than equivalent steel tools, with tensile strengths of 200-300 MPa, depending on the alloy used. This strengthens them for most common applications while significantly reducing user fatigue during extended use.

Technical Benefits Across Industries

• Corrosion Resistance: Aluminum die casting provides excellent corrosion resistance across industries, especially when anodized or coated. This property extends the lifespan of components exposed to moisture and chemicals in appliances and healthcare devices.
• Thermal Management: Aluminum’s high thermal conductivity (around 235 W/m·K) makes it ideal for applications in appliances, medical devices, and tools where heat dissipation is critical.
• Lightweight with High Strength: Aluminum’s (approximately 2.7 g/cm³ density) weight savings compared to steel’s (around 7.8 g/cm³) provide efficiency gains without sacrificing mechanical integrity, particularly in tools and medical devices.
• Dimensional Accuracy: Aluminum die casting’s precision allows for the creation of parts with complex geometries and tight tolerances (typically within ±0.005 inches/inch), minimizing the need for secondary machining across all industries.

Challenges and Innovations

Technical Challenges

Despite its widespread advantages, aluminum die casting faces several technical challenges that manufacturers must address to ensure quality and efficiency. Below are some of the most common challenges and the technical solutions to mitigate them.

1. Porosity:
   • Issue: Porosity occurs when gases become trapped inside the molten aluminum during injection, leading to voids or bubbles in the final cast. This compromises the mechanical integrity of the part and can cause issues like leakage in pressure vessels or reduced structural strength in load-bearing components.
   • Solution: Modern die-casting processes use vacuum-assisted casting to reduce air entrapment in the mold. Creating a vacuum within the mold cavity before injecting the molten aluminum can significantly reduce the risk of porosity. Additionally, degassing techniques (such as argon bubbling) remove dissolved gases from the molten aluminum before injection, further minimizing the formation of porosity.

Using vacuum-assisted casting, the porosity level can be reduced to less than 1-2% of the cast volume, compared to 5-7% in traditional high-pressure casting processes. This leads to a 20-30% improvement in critical components’ fatigue strength, such as engine blocks or transmission housings.

1. Die Wear and Thermal Fatigue:
   • Issue: The repeated heating and cooling cycles in aluminum die casting can lead to significant wear on the die surfaces, particularly in high-volume production. Over time, this can cause dimensional inaccuracies or defects such as cracks and erosion in the die material.
   • Solution: Die coatings, such as titanium nitride (TiN) or chromium nitride (CrN), help extend the life of the dies by providing a more complex, more wear-resistant surface. Additionally, optimized cooling channels are incorporated into the die to manage thermal cycling and reduce localized hotspots, minimizing the stress on the die material.

Die coatings like TiN can increase die life by up to 200%, with surface hardness levels of 2000 HV (Vickers Hardness). Proper thermal management can also reduce thermal fatigue, increasing die life from 50,000 to 100,000 cycles to 300,000 to 500,000 cycles in high-production environments.

1. Inconsistent Filling of Complex Geometries:
   • Issue: Achieving consistent filling of the die, particularly for parts with complex geometries or thin walls, is a challenge due to rapid cooling of the aluminum as it moves through the die. This can lead to incomplete fills, cold shuts, or weak spots in the final part.
   • Solution: Advanced flow simulation software and optimized gate design are used to predict and improve how the molten aluminum flows into the die. Squeeze casting techniques—where additional pressure is applied after injection—ensure the molten metal reaches every part of the mold, reducing defects and improving part quality.

Squeeze casting can reduce defects like cold shuts by 50-60% and increase tensile strength by 10-15% in complex parts such as structural aerospace components or thin-walled electronic enclosures.

Innovations in Die Casting Technology

Recent innovations in aluminum die casting have focused on improving quality, reducing costs, and enhancing the overall efficiency of the process. Below are some key advancements.

1. 3D Printed Sand Cores:
   • Innovation: The introduction of 3D-printed sand cores into aluminum die casting enables the creation of more complex internal geometries without the limitations of traditional core-making processes. This allows for integrating features such as cooling channels or intricate hollow sections in a single casting, reducing the need for secondary machining.
   • 3D-printed sand cores can reduce the lead time for new tooling by 30-40% and lower overall production costs by 10-15% due to the elimination of core assembly steps. This is particularly useful in producing engine components like cylinder heads with intricate internal cooling passages.
2. High-vacuum die Casting (HVDC):
   • Innovation: High-vacuum die casting (HVDC) improves the quality of aluminum parts by further reducing air entrapment during the injection process. This technique achieves near-zero porosity levels, making the cast parts suitable for highly demanding applications such as structural automotive components or aerospace parts where porosity can be detrimental.
   • HVDC can reduce porosity to less than 1%, increasing tensile strength by 20-30% compared to conventional die-casting methods. Parts produced using HVDC often achieve elongation values of 8-10%, a significant improvement over traditional casting methods, which typically result in elongation values of 3-5%.
3. AI-Driven Process Control:
   • Innovation: AI-driven systems for real-time process monitoring and adjustment have begun to revolutionize the die-casting industry. These systems use sensors embedded in the die and casting equipment to monitor variables such as temperature, pressure, and flow rates, adjusting the process parameters in real-time to ensure optimal casting conditions.
   • AI-driven process control can reduce scrap rates by 15-25%, lower cycle times by 10-15%, and improve overall product quality by ensuring more consistent casting conditions. This is especially beneficial in high-volume manufacturing, where even minor process variations can lead to significant defects.

Sustainability in Die Casting

The sustainability of the die-casting process has become increasingly important as industries seek to reduce their environmental impact. Aluminum die casting, in particular, has seen several innovations to make the process more environmentally friendly.

1. Recycling of Aluminum:
   • Sustainability Effort: Aluminum is highly recyclable, and over 90% of the aluminum used in die casting is sourced from recycled material. This reduces the environmental impact of mining and processing new aluminum and lowers energy consumption during casting.
   • Recycling aluminum uses 95% less energy than producing aluminum from bauxite ore. For example, using recycled aluminum in die casting can reduce CO₂ emissions by up to 80%, contributing to a much lower carbon footprint for the manufacturing process.
2. Water-Based Die Lubricants:
   • Sustainability Effort: Traditional die casting relies on oil-based lubricants to ensure smooth release of the cast part from the die. However, these lubricants contribute to VOC emissions and environmental pollution. The shift to water-based die lubricants has significantly reduced the environmental impact of the die-casting process.
   • Water-based die lubricants can reduce VOC emissions by 90% and improve the working environment by reducing exposure to harmful fumes. Additionally, water-based lubricants can lower overall operating costs by 5-10% due to reduced waste disposal and environmental compliance costs.
3. Energy-Efficient Casting Machines:
   • Sustainability Effort: Newer die-casting machines are designed to consume less energy through improved hydraulic systems and more efficient heating elements. Additionally, integrating regenerative braking systems into these machines captures energy during the mold opening and closing cycles, reducing overall power consumption.
   • Energy-efficient die-casting machines can reduce electricity consumption by 10-20% compared to older models. For a high-volume production facility, this can result in energy savings of up to 500,000 kWh annually, translating into both environmental benefits and cost reductions.

Aluminum Casting Manufacturers

Selecting suitable aluminum casting manufacturers is a significant decision that directly affects the finished product’s quality, accuracy, and performance. In the current world, manufacturers must have the best tools and knowledge of the materials and processes for making products for industries such as automobiles, aerospace, electronics, and healthcare.

Capabilities of Leading Aluminum Casting Manufacturers

High vacuum die casting (HVDC) is one of the techniques experienced aluminum casting manufacturers use, which helps reduce porosity and enhance the cast parts’ mechanical properties. This is because vacuum-assisted casting has been known to minimize internal defects by as much as 90 percent, thus producing more robust and reliable components. This technology benefits safety-critical applications such as automotive engine blocks, aerospace structure members, and medical device outer shells where the internal surface defect could be catastrophic.

In addition, most of the leading aluminum casting companies employ CAD and flow simulation software in their design to enhance the fluid flow and cooling in the die. These simulations are beneficial in producing parts with features such as undercuts, thin walls, or internal channels. For instance, mold flow analysis can be used to avoid common problems like cold shuts or microns and thus ensure that the molten aluminum flows well in the die cavity and freezes correctly.

For applications with critical thermal or electrical conductivity, such as heat sinks, electronics enclosures, or battery boxes, the best aluminum casting suppliers use alloys like A360 or A380. These alloys are selected based on mechanical properties and thermal conductivity to meet performance requirements in extreme conditions.

Sustainable Practices in Aluminum Casting

This is an essential concern for aluminum casting producers because many industries are shifting their focus towards environmentally friendly and energy-efficient production. Some companies have embraced recycling measures, such as using up to 95% recycled aluminum in casting. This, in turn, has the added advantage of minimizing the environmental effects while at the same time decreasing the cost of production because less energy is required to melt recycled aluminum than that which is necessary to melt virgin aluminum. When aluminum is recycled, only five percent of the energy needed to produce aluminum from bauxite ore is utilized, thus making it very efficient.

In addition, most aluminum casting producers have switched to using water-soluble die lubricants and energy-efficient casting machines to minimize emissions and costs. These innovations can cut VOC emissions by up to 90% and energy use by 15-20%, thus making the aluminum casting process more eco-friendly while still producing quality products.

Partnering with Aluminum Casting Manufacturers

In choosing the aluminum casting manufacturers, it is essential to look at the company’s technical know-how, capacity, and level of innovation. Hence, manufacturers that embrace robotic automation, artificial intelligence in process control, and real-time quality control will be able to produce high-quality products within a shorter time. These manufacturers can minimize cycle times, decrease material costs, and attain higher levels of precision, which can be as high as ±0. These are 0. 005 inches per inch makes them perfect for use in industries requiring a lot of accuracy.

With the help of such technologies, aluminum casting manufacturers can help their clients create parts that are light and strong but also economical and eco-friendly. Whether you are producing automotive parts for high-performance vehicles, medical equipment, or aerospace components, choosing the suitable aluminum casting manufacturers will ensure you get all the technical support and creative ideas required to meet the design challenges and industry standards.

In the current world where time, accuracy, and environmental concerns are critical, choosing to work with aluminum casting manufacturers who have adopted the latest technology and environmentally friendly measures will significantly improve your project’s outcome. When selecting manufacturers, consider those with a lot of experience, who offer a wide range of services, and who are willing to innovate to provide you with the best parts possible in the shortest time possible and comply with the current die-casting technology.

 Conclusion

Aluminum die casting is still among the most flexible and economical ways of manufacturing parts and products. It enables the creation of accurate, lightweight, and long-wearing parts for various sectors. From the automotive industry’s quest for better fuel economy to the aerospace industry’s need for strength-to-weight ratio, aluminum die casting solves today’s engineering needs.

Nevertheless, the process has some drawbacks, like porosity and die wear. However, recent advancements like high-vacuum die casting, 3D-printed cores, and AI in process control have enhanced the quality and minimize production costs. In addition, the industry has embraced sustainability in its operations, such as using recycled aluminum and water-based lubricants, which aligns with the global shift towards sustainable manufacturing.

Due to enhancements in aluminum die-casting technology in terms of productivity and functionality, this process is expected to be used more extensively in industries such as healthcare, consumer electronics, and renewable energy. Aluminum die casting is a versatile method of production that offers a high level of technical innovation and cost efficiency, and it is set to continue being an essential element of manufacturing in the future.

Follow MechInsights for more Mechanical Engineering Content.
